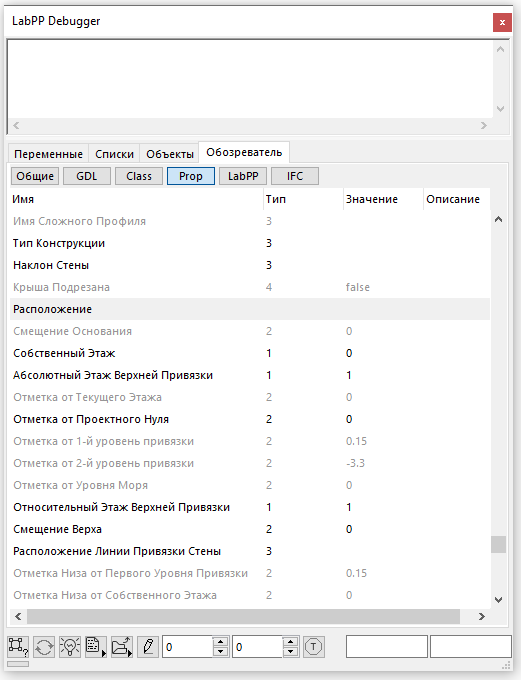

The browser-like debugger allows you to view and modify information on elements.

You can, for example, see parameter values ​​(including those given by formulas), GDL element parameter values, IFC properties, and so on.


The debugger with the functions of the browser of these elements is called by a keyboard shortcut

Ctrl+Shift+F9

To view data about an element, select it in the window and click the button

The window reads data from the element.

Note that only one element is selected.

If multiple items have been selected, the data will be shown from the first item in the group.

The window remembers the element.

You can highlight the read element with a narrow button in the lower left corner.

The second button on the left can re-read data from the same element.

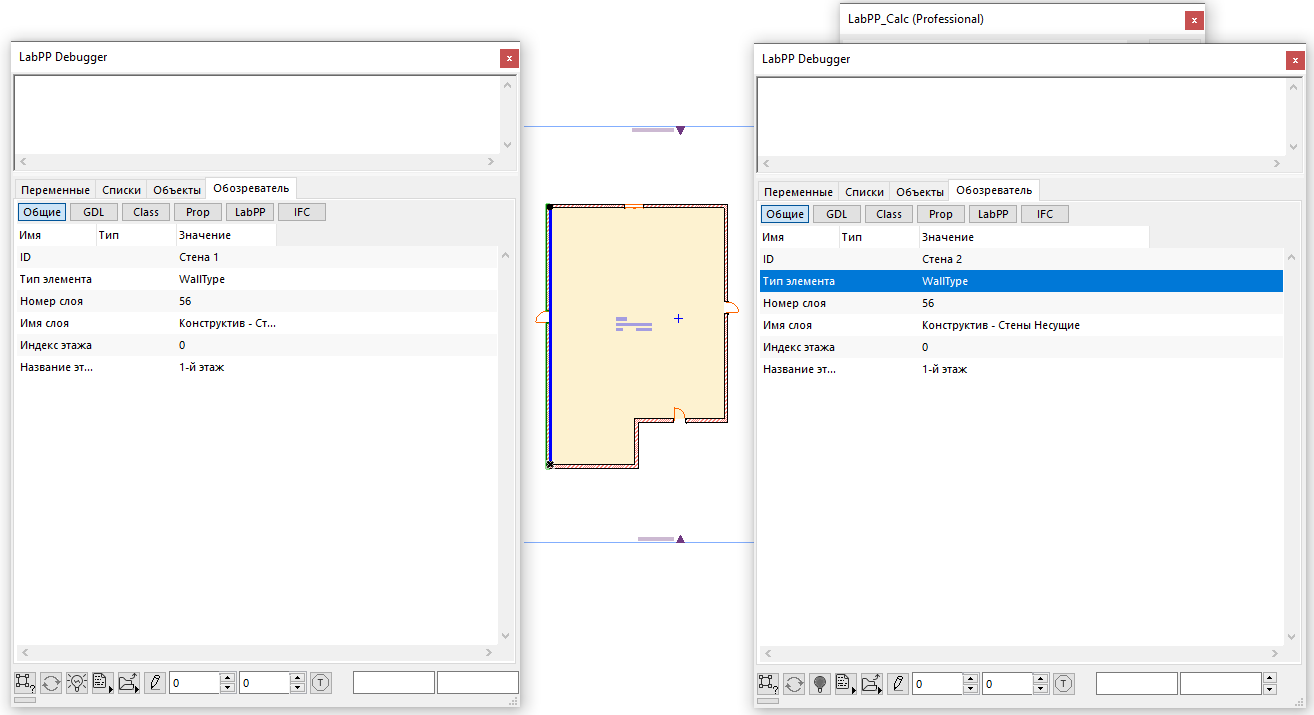

To show the data of several elements at once, you can call as many debuggers as you like.

The second and subsequent windows open if the button is in position in other windows.

Then pressing Ctrl+Shift+F9 will bring up another window, and so on.
